Honeycomb core aluminum foil

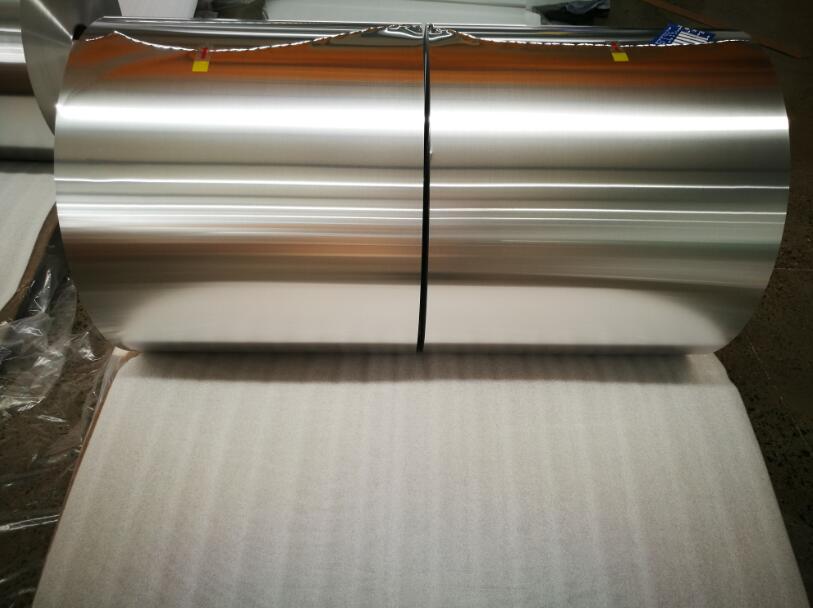

Manufacturer of raw material for aluminum foil rolls for honeycomb cores (do not do post-composite, printing, gluing and other processing techniques, only provide aluminum substrates)

Honeycomb aluminum foil structure:

The upper and lower bottom and faceplates of the aluminum honeycomb panel are made of aluminum alloy plates, with a layer of thick and light honeycomb core sandwiched in between, and the faceplate and the sandwich core are glued into a whole rigid structure by an adhesive. The surface treatment of the panel can be fluorocarbon, roll coating, thermal transfer, wire drawing, and oxidation; aluminum honeycomb panels can also be combined with fire-resistant panels, stone, and ceramics.



product description:
The upper and lower bottom plates and panels of the aluminum honeycomb panel are mainly made of high-quality 3003-H24 or 5052-H14 alloy aluminum plates, the thickness of which is between 0.4mm-3.0mm.

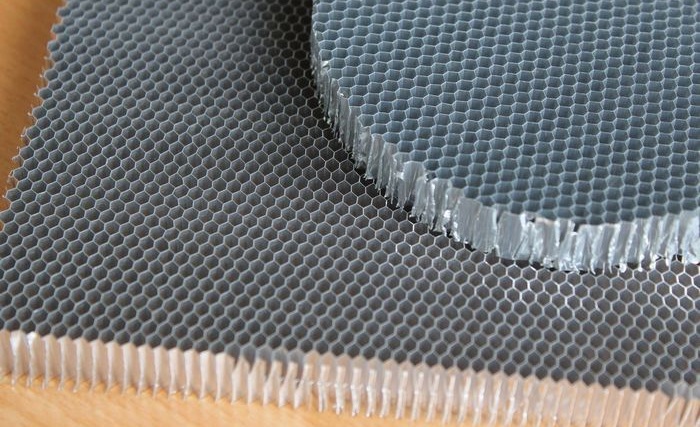

The aluminum foil roll for honeycomb core is a hexagonal honeycomb core made of 3003 aluminum foil, the thickness of the aluminum foil is 0.02~0.06mm, and the side length models of the aluminum honeycomb are 5mm, 6mm, 8mm, 10mm, 12mm, etc.

Henan chalco is one of the top ten aluminum foil manufacturers in China. It can take orders for 3003 aluminum foil and 5052 aluminum foil raw materials for 3-2000 tons of honeycomb aluminum foil. The product quality is stable, global export, and the price is affordable. You can rest assured to purchase!



Features of honeycomb aluminum foil:

1. Honeycomb aluminum foil has been widely used in exterior wall decoration of high-rise buildings due to its light weight, high strength, high rigidity and many other advantages;
2. The honeycomb aluminum foil has low density and light weight, which can greatly reduce the construction load and cost;
3. The middle layer of honeycomb aluminum foil contains a lot of air, which can be soundproof, heat insulated, waterproof, moisture-proof, heat-preserving, and no harmful gas released;
4. The specific strength per unit mass is high, the specific rigidity is high, it is not easy to deform, the surface has extremely high flatness, and the seismic performance is good
