aluminium foil for 1070

Product introduction

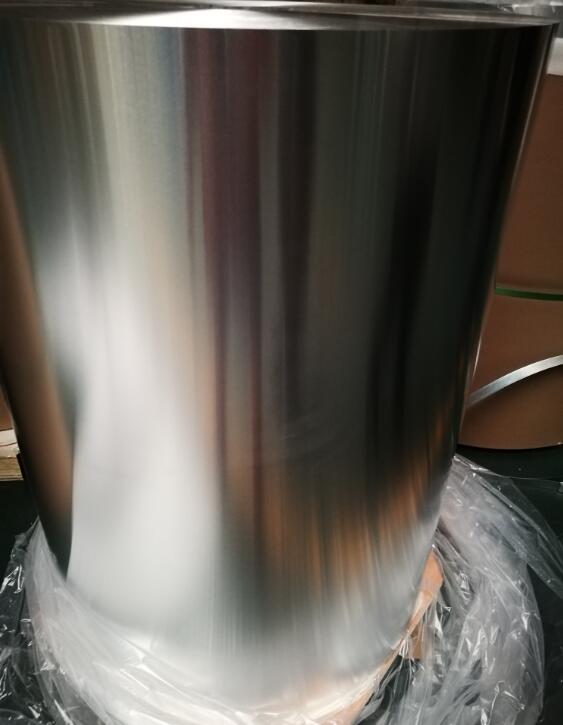

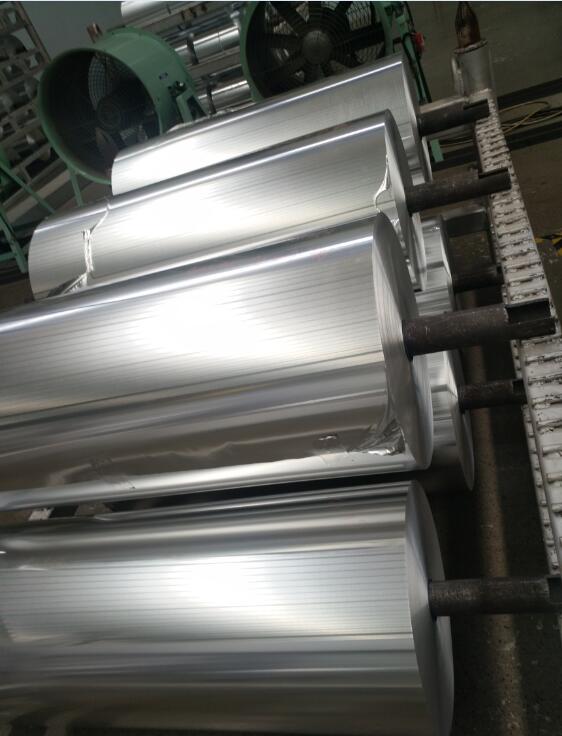

1070 aluminium foil has high plasticity, corrosion resistance, good conductivity and thermal conductivity. It is suitable for making PCB entry sheet and capacitors. Signi aluminium introduced first-class foil rolling mill to ensure good shape. The 1070 aluminium foil of Signi aluminium is applied to electronic foil, with a market share of over 80%. The product has stable performance and excellent quality.

Signi Aluminium stocks a variety of aluminium foil grades and sizes tailored to your needs and specifications.

Send us email

Specification

Performance

Application

1070 aluminium foil Technical Parameters:

Alloy	1070 aluminium foil
Temper	O、H22、H24,H18
Thickness（mm）	0.016-0.2
Width（mm）	100-1600
Length（mm）	C
Typical products	Electronic components, food packaging, etc.

Chemical Composition of 1070 aluminium foil：

Si	Fe	Cu	Mn	Mg	V	Zn	Ti	Others		Al
								Individual	Total
0.20	0.25	0.04	0.03	0.03	0.05	0.04	0.03	0.03	-	99.70

Mechanical propertiesof 1070 aluminium foil：

Alloy	Temper	Thickness (mm)	Tensile Strength （Mpa）	Elongation (%) A50mm	Elongation (%) A100mm
1070	O	0.016-0.024	40-105	-	≥1.5
		0.025-0.04	50-105	-	≥2.0
		0.041-0.09	55-105	-	≥2.0
		0.091-0.14	60-115	≥12	-
		0.14-0.20	60-115	≥15	-
	H22	0.016-0.024	-	-	-
		0.025-0.04	90-135	-	≥2.0
		0.041-0.09	90-135	-	≥3.0
		0.091-0.14	90-135	≥4	-
		0.14-0.20	90-135	≥6	-
	H24	0.016-0.024	-	-	-
		0.025-0.04	110-160	-	≥2.0
		0.041-0.09	110-160	-	≥3.0
		0.091-0.14	110-160	≥4	-
		0.14-0.20	110-160	≥6	-
	H18	0.016-0.20	≥140	-	-
