aluminium foil alloy 8011

Product introduction

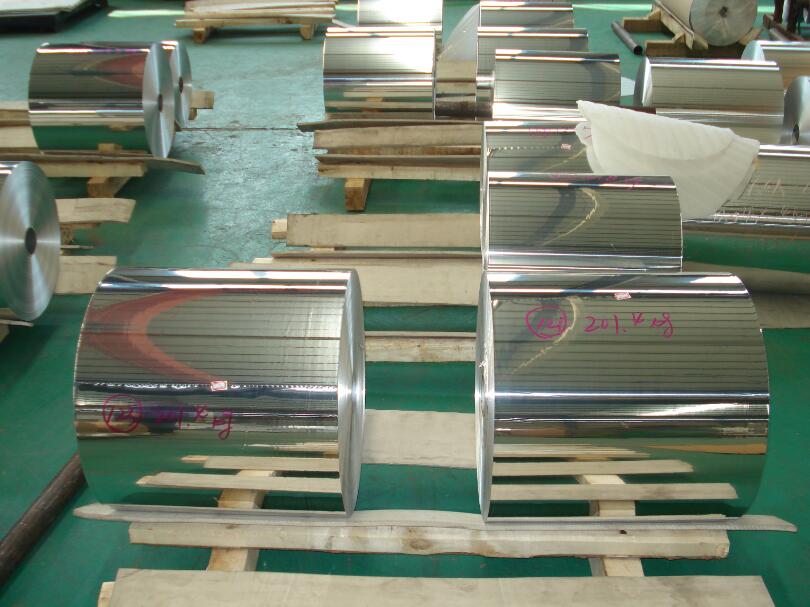

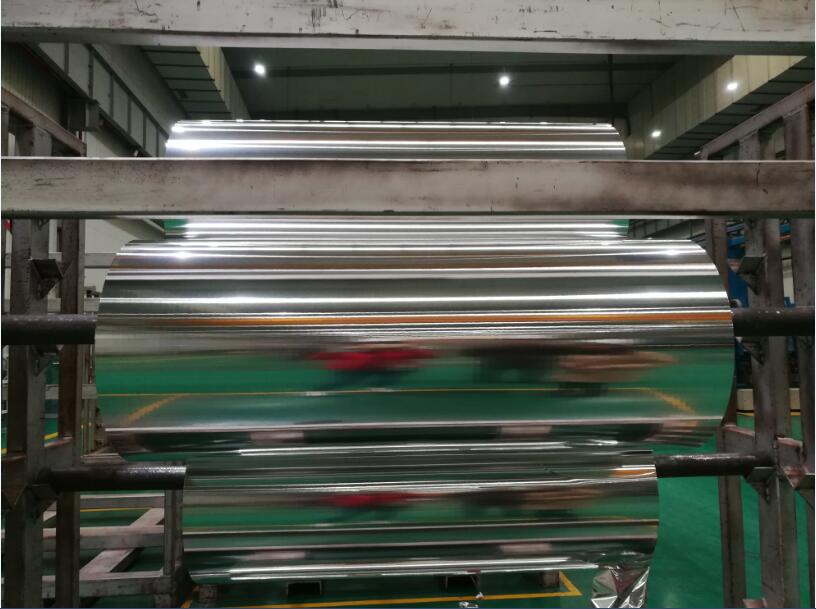

8011 aluminium foil is our company's advantage products, Henan Signi aluminium can process 0.006-0.2mm thickness of 8011 aluminium foil, the aluminium foil is mainly used in pharmaceutical packaging, food packaging, cable foil, milk cover, seal foils etc fields. Henan Signi aluminium ‘s 8011 aluminium foilcan be customized according to customer needs.

Signi Aluminium stocks a variety of aluminium foil grades and sizes tailored to your needs and specifications.

Send us email

Specification

Performance

Application

8011 aluminium foil Technical Parameters

Alloy	8011 aluminium foil
Temper	O,H14,H16,H18,H19,H22,H24
Thickness（mm）	0.006-0.2
Width（mm）	100-1600
Length（mm）	C
Typical products	Pharmaceutical foil, tape foil, cable foil,foodcontainer material, food foil, etc.

Chemical Composition of 8011 aluminium foil：

Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others		Al
								Individual	Total
0.5- 0.9	0.6- 1.0	0.10	0.20	0.05	0.05	0.10	0.08	0.05	0.15	Rem

Mechanical propertiesof 8011 aluminium foil:

Alloy	Temper	Thickness (mm)	Tensile Strength （Mpa）	Elongation (%) A50mm	Elongation (%) A100mm
8011	O	0.006-0.009	50-100	-	0.5
		>0.009-0.025	55-100	-	1
		>0.025-0.04	55-110	-	4
		>0.04-0.09	60-120	-	4
		>0.09-0.14	60-120	13	-
		>0.14-0.2	60-120	15	-
	H18	0.035-0.2	≥160	-	-
	H19	0.035-0.2	≥170	-	-
	H22	0.035-0.04	90-150	-	1.0
		>0.04-0.09	90-150	-	2.0
		>0.09-0.14	90-150	5	-
		>0.14-0.2	90-150	6	-
	H24	0.035-0.04	120-170	2	-
		>0.04-0.09	120-170	3	-
		>0.09-0.14	120-170	4	-
		>0.14-0.2	120-170	5	-

Typical Usage of 8011 aluminium foil：
It can be used for Pharmaceutical packaging foil, tape foil, cable foil, food packaging, beer sealing foil, etc.
