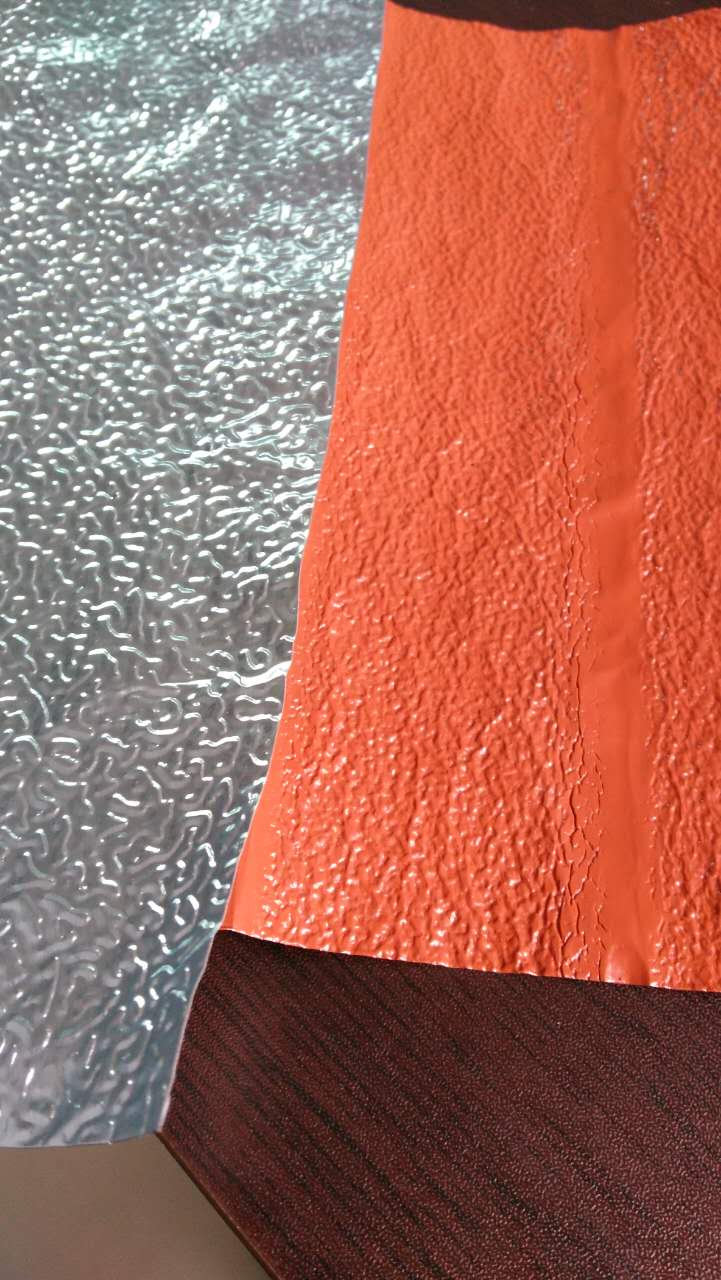

Stucco Embossed aluminium foil

1. Stucco Embossed aluminium foil

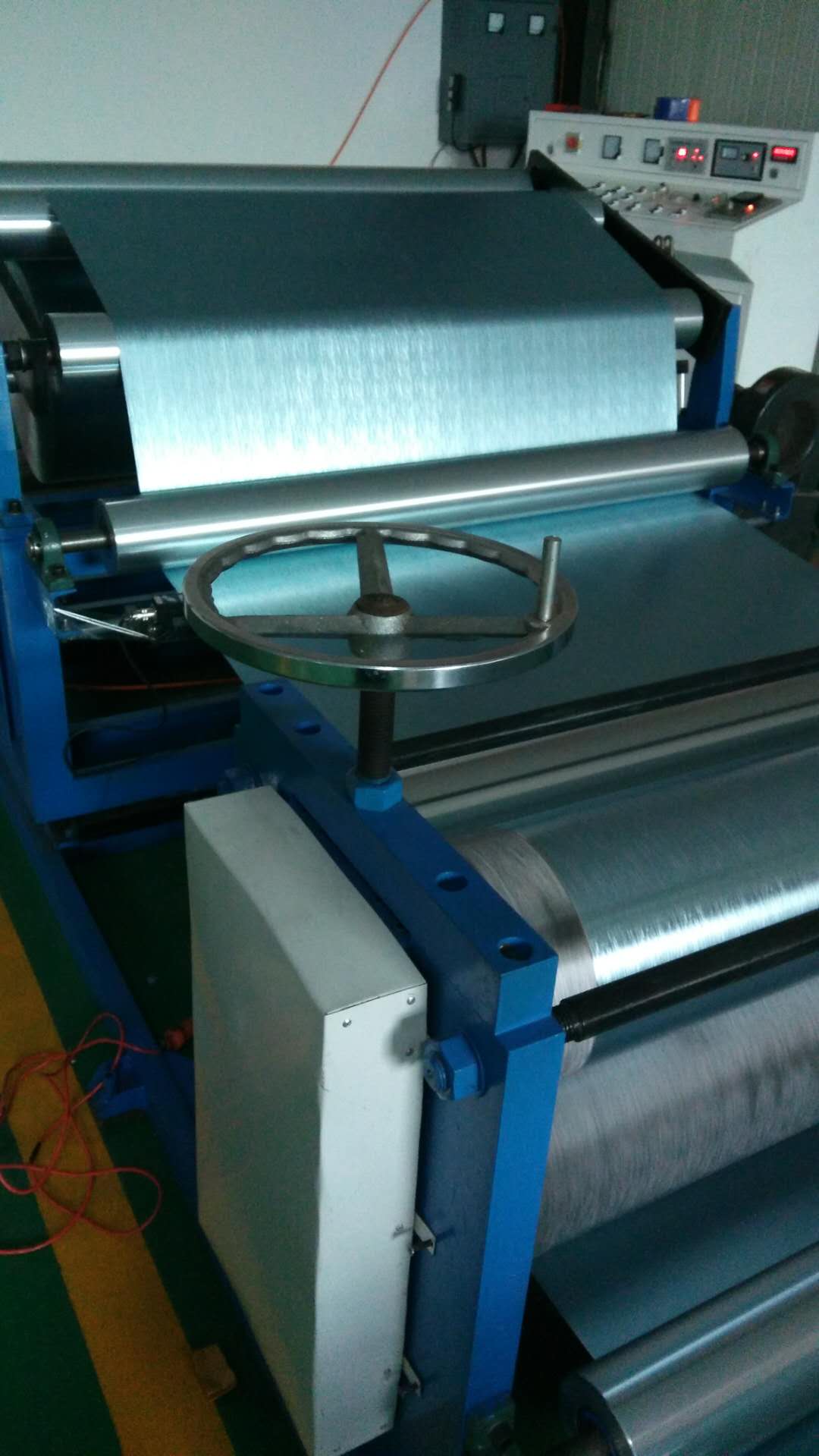

The stucco embossed aluminium foil is a product that uses the Embossing equipment to press all kinds of patterns on the plain aluminium foil, colored aluminium foil, all mounted aluminium foil and all mounting colored aluminium foil. Through embossing, it can increase the beautiful decorative appearance of the product and increase the commodity value of the aluminium foil.



Embossed aluminium foil is mainly used for tobacco, food, confectionery, medicine, cosmetics etc packaging, and can also be used for insulation wall materials and roofing materials in construction industry.
aluminium foil embossing can be carried out separately or process with dyeing and mounting paper in the same time.
The general technical parameters of the embossed aluminium foil:
1) aluminium foil:
Thickness: 0.025-0.50mm width: less than 1320mm
2) Mounted  aluminium foil
aluminium foil thickness: 0.007-0.02mm
Paper thickness: 20-150 g/㎡ ,
material width: ≤1320mm
3) The rate of embossing production: the speed ≤250 m /min
4) uncoiling, reeling of outer diameter
aluminium foil ≤ φ600mm
Mounting paper aluminium foil ≤ φ800mm

1.2 coated aluminium foil
Coating on the surface of aluminium foil with a certain function of adhesive, paint, wax, pigment, or paint with some special functions, which can be firmly combined with aluminium foil after drying or solidifying, is called aluminium foil coating.
All aluminium foil, without plain foil or composite foil, hard state  foil or soft state  foil, one side bright or two sides bright, all can be the coating processed. According to the different coating material, can get a wide variety of different types of aluminium foil, such as Colourful Coloured foil, and medicinal foil with hot sticky properties. In order to get water resistance, frost resistance, wear resistance, oil resistance, acid resistance, alkali resistance, insulation, skid etc, it can be coated with corresponding material to improve the characteristics of aluminium foil.

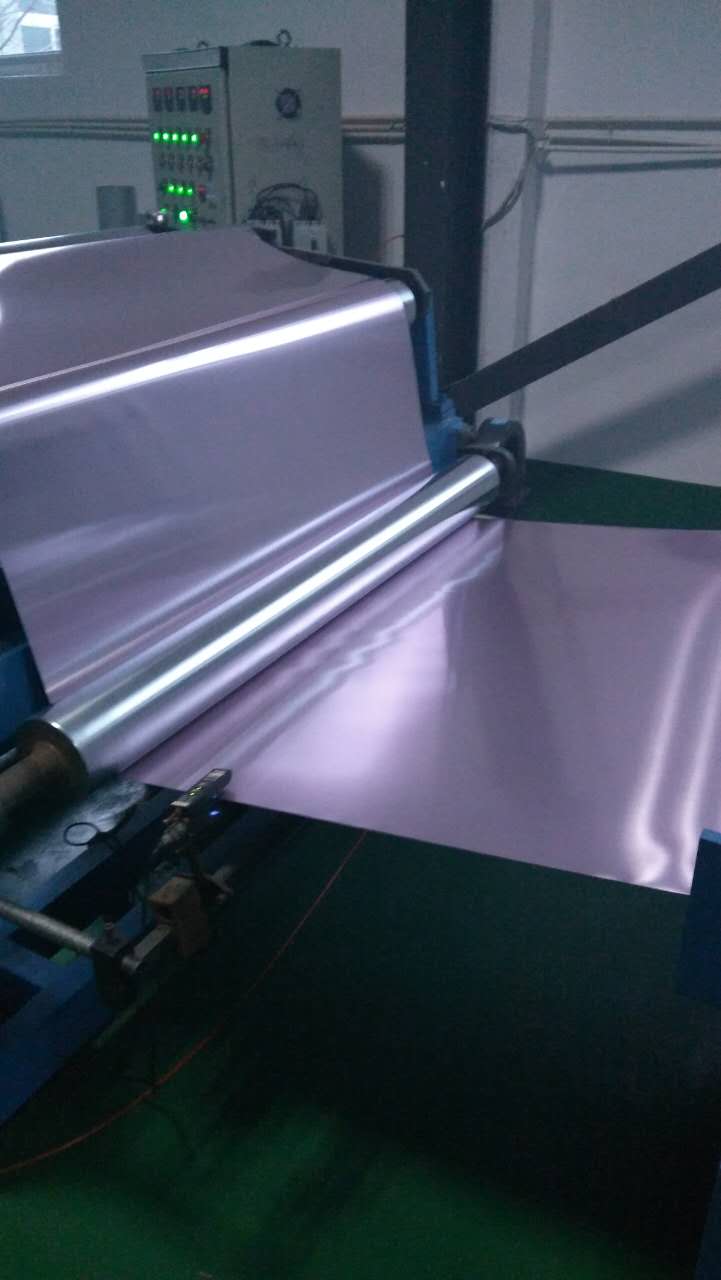

1.3 aluminium foil coloring
aluminium foil coloring is one kind of aluminium foil coating. aluminium foil is colored with colored coating paint, also known as coloring or dyeing. It can not only add to the aluminium foil appearance, but also can prevent the oxidation of aluminium foil, prolong the service life of the aluminium foil. At the same time, the coloring layer can also seal some aluminium foil pinholes to improve the moisture resistance of it.
Coloured aluminium foil is mainly used for packaging candy, food, cosmetics,etc.
1) the composition of colorants is mainly composed of varnish, rarefaction agent and pigment powder.
2) the main process of aluminium foil coloring is: aluminium foil uncoiling - coating coloring - drying - cooling - coiling.
3) the general technical parameters of aluminium foil coloring are as follows:
Thickness:≤ 0.02mm
Width: ≤ 1320mm
Production speed ≤150 m /min
Drying temperature: 60-120℃
Coating thickness: 1-2 g/㎡
The modulation temperature of the colorant:≤ 50 ℃





Specification and parameters of Stucco Embossed Lacquered aluminium foil:
Thickness: 0.007-0.02mm
Width:≤ 1320mm
Main alloys: 1100 1200 1060 8011
Main states: O, H22,etc
Coating: single coated or double-sided coated
Main uses: It is mainly used in the packaging of tobacco, food, candy, medicine, cosmetics, etc., and can also be used in the insulation wall material and roofing materials of the construction industry.
